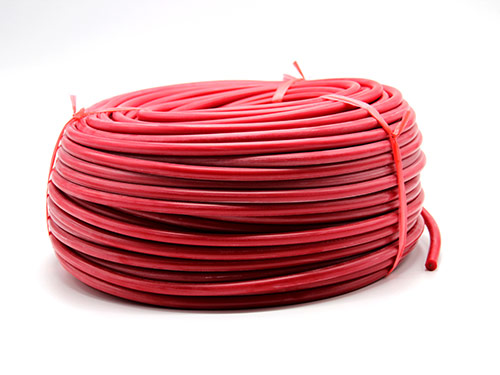

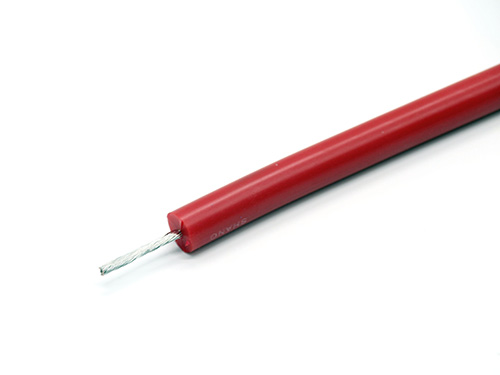

产品型号：硅橡胶绝缘高压电线AGG（交流）AGG-AC
产品特性：
1、额定电压：交流1kv、3kv、6kv、10kv、35kv

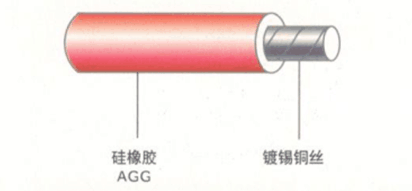

2、工作温度：-60~+200℃
3、导体：绞合镀锡铜线
4、绝缘：硅橡胶
5、颜色：红/黄/兰/白/黑/黄绿/棕等
特点用途：具有优良的耐高温耐低温性能，具有优良的电绝缘性能，优良的化学稳定性能，耐高电压，耐老化，使用寿命长，且柔软便于安装。
广泛应用于照明灯具、家用电器、电热电器、仪表仪器、电机引接线及电子、灯具、燃具等高温环境。
交货要求：按双方合同协议商定，允许不小于10米的短段交货，其数量应不超过交货总长度的10％。
规格结构及技术参数：
|
电压等级 |
导体标称截面 mm 2 |
导体结构 |
平均外径 |
20℃导体直流电阻最大值 Ω/km |
包装长度 (m) |
|
1KV |
0.50 |
16/0.20 |
3.30 |
40.1 |
100 |
|
0.75 |
24/0.20 |
3.60 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
3.70 |
20.0 |
100 |
|
|
1.50 |
48/0.20 |
4.0 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
4.30 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
4.40 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
5.60 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
6.60 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
7.80 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
9.00 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
11.20 |
0.795 |
100 |
|
|
35.0 |
494/0.30 |
12.8 |
0.565 |
100 |
|
|
50.0 |
396/0.40 |
15.0 |
0.393 |
100 |
|
|
70.0 |
551/0.40 |
17.2 |
0.277 |
100 |
|
|
95.0 |
760/0.40 |
19.80 |
0.210 |
100 |
|
|
120.0 |
608/0.50 |
21.50 |
0.164 |
100 |
|
|
150.0 |
760/0.50 |
23.40 |
0.132 |
100 |
|
|
185.0 |
925/0.50 |
25.20 |
0.108 |
100 |
|
|
3KV |
0.50 |
16/0.20 |
4.50 |
40.1 |
100 |
|
0.75 |
24/0.20 |
4.80 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
5.20 |
20.0 |
100 |
|
|
1.50 |
48/0.20 |
5.60 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
5.90 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
6.40 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
7.20 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
8.40 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
9.40 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
11.0 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
12.80 |
0.795 |
100 |
|
|
6KV |
0.50 |
16/0.20 |
5.90 |
40.1 |
100 |
|
0.75 |
24/0.20 |
6.20 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
6.30 |
20.0 |
100 |
|
|
1.50 |
48/0.20 |
7.20 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
7.50 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
8.0 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
8.80 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
10.0 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
11.0 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
12.80 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
14.60 |
0.795 |
100 |
|
|
|
0.30 |
7/0.26 |
9.00 |
71.2 |
100 |
|
0.50 |
16/0.20 |
9.00 |
40.1 |
100 |
|
|
0.75 |
24/0.20 |
9.00 |
26.7 |
100 |
|
|
1.00 |
32/0.20 |
9.00 |
20.0 |
100 |
|
|
1.50 |
30/0.25 |
9.00 |
13.7 |
100 |
|
|
2.00 |
40/0.25 |
10.0 |
10.0 |
100 |
|
|
2.50 |
49/0.25 |
10.0 |
8.21 |
100 |
|
|
4.00 |
56/0.30 |
10.0 |
5.09 |
100 |
|
|
6.00 |
84/0.30 |
11.0 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
12.0 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
13.8 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
15.60 |
0.795 |
100 |
|
|
35KV |
4.00 |
56/0.30 |
18.0 |
5.09 |
100 |
|
6.00 |
84/0.30 |
18.0 |
3.39 |
100 |
|
|
10.0 |
84/0.40 |
19.0 |
1.95 |
100 |
|
|
16.0 |
126/0.40 |
20.0 |
1.24 |
100 |
|
|
25.0 |
196/0.40 |
21.0 |
0.795 |
100 |
|
|
35.0 |
494/0.30 |
23.0 |
0.565 |
100 |
|
|
50.0 |
396/0.40 |
25.0 |
0.393 |
100 |
|
|
70.0 |
551/0.40 |
27.0 |
0.277 |
100 |
|
|
95.0 |
760/0.40 |
29.0 |
0.210 |
100 |
